Autosplice metal stamping products ranging from .001″ (.0254mm) to .060″ (1.524mm) thick in the following alloys: Phosphor Bronze, Beryllium Copper, Copper, Nickel-Silver, Stainless Steel, Brass, and a wide range of other alloys available within the global industry, supporting diverse needs for electrical terminals and electrical connectors.

Autosplice stamped terminal products

VIEW PRODUCT LINE

Our tab terminals are stamped from a continuous strip of material with the use of precision, progressive dies and then postplated to provide optimum solderability and corrosion resistance. These pcb terminals and electrical connectors are designed to be inserted directly into a printed circuit board, offering high reliability in automated production environments and helping maintain consistent electrical performance and added corrosion protection for demanding applications.

PCB tab terminals are then reeled ready for machine insertion. They are designed for use in the automotive, electrical, telecommunications and electronics industries, where dependable electrical connections are essential.

Our equipment list features more than 42 Bruderer presses covering ranges from 15 ton to 100 ton presses. This diversity of equipment ensures we will always have the perfect press for your particular global application.

The capabilities and variety of our metal stamping presses, our expertise in tooling design and engineering, coupled with continuous improvements in manufacturing driven through our ISO/TS 16949 quality standards, ensure competitive pricing and shorter lead times within our global manufacturing footprint.

TAB TERMINALS

1.05 mm x 0.8mm Current rating 15 A

1.05 mm x 0.8mm Current rating 15 A

1.5 mm x 0.8mm Current rating 18 A

1.5 mm x 0.8mm Current rating 18 A

2.8 mm x 0.8mm Current rating 28 A

2.8 mm x 0.8mm Current rating 28 A

3.0 x 0.80 mm Current rating 30 A

3.0 x 0.80 mm Current rating 30 A

4.0 x 0.80 mm Current rating 30 A

4.0 x 0.80 mm Current rating 30 A

4.75 mm x .08mm Current rating 36 A

4.75 mm x .08mm Current rating 36 A

5.0 x 0.81 mm Current rating 40 A

5.0 x 0.81 mm Current rating 40 A

6.0 x 0.80 mm Current rating 42 A

6.0 x 0.80 mm Current rating 42 A

6.35 mm x 0.8mm Current rating 44 A

6.35 mm x 0.8mm Current rating 44 A

8.0 x 0.81 mm Current rating 52 A

8.0 x 0.81 mm Current rating 52 A

9.5 x 1.17 mm

9.5 x 1.17 mm

SMT PIN CONNECTORS

0.635 x 0.635 mm

0.635 x 0.635 mm

0.635 x 0.635 mm

0.635 x 0.635 mm

1.5 x 0.81 mm

1.5 x 0.81 mm

1.57 x 0.79 mm

1.57 x 0.79 mm

2.8 x 0.51 mm

2.8 x 0.51 mm

RECEPTACLES / SOCKET CONNECTORS

Pin 0.50 mm

Tr-Leg receptacle

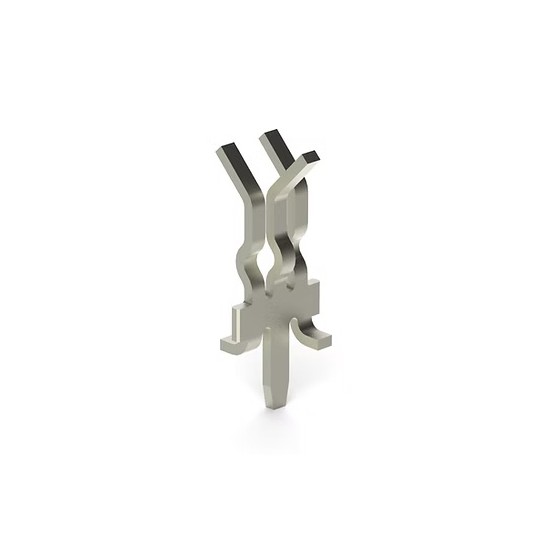

Pin 0.81 mm

Pin receptacle

Pin 2.38 mm

SMT socket connector

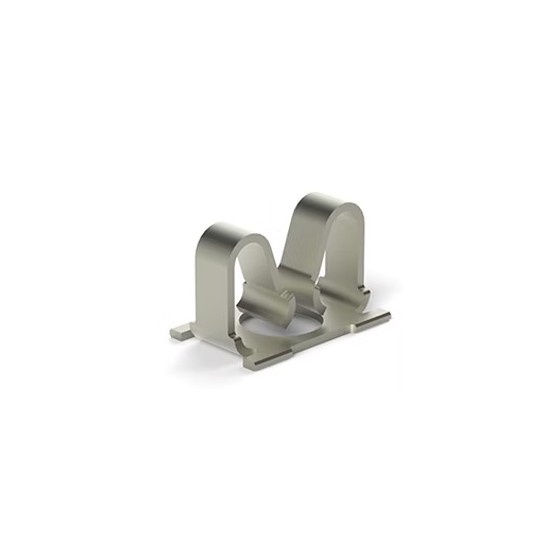

Pin 1.27 mm

SMT socket connector

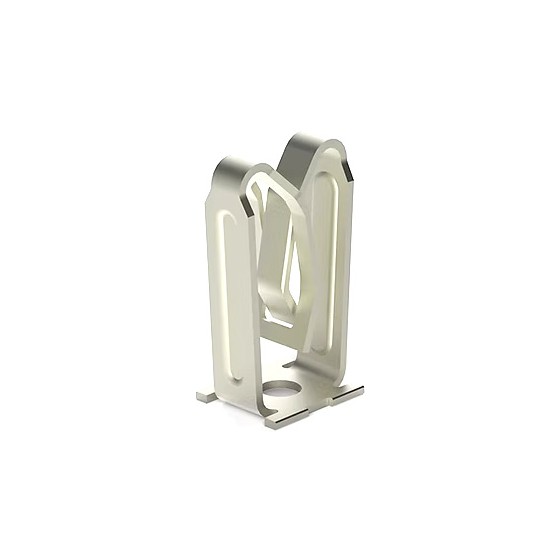

Blade 0.50 mm

SMT socket connector

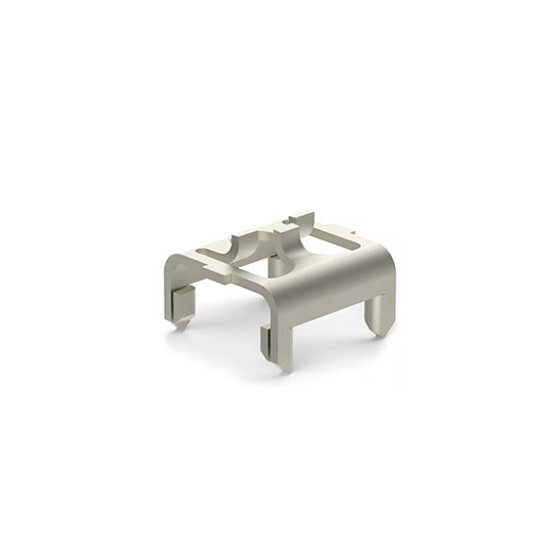

Blade 2.8 x 0.80 mm

Blade 2.8 x 0.80 mm

Bottom entry socket

TUNING FORK CONNECTORS

Mating Blade thickness 0.78mm to 0.83mm Gap 0.55mm Current rating: 25 A

Mating Blade thickness 0.78mm to 0.83mm Gap 0.55mm Current rating: 25 A

Mating Blade thickness 1.1mm to 1.25mm Gap 0.96 mm Current rating: 25 A

Mating Blade thickness 1.1mm to 1.25mm Gap 0.96 mm Current rating: 25 A

Mating Blade thickness 0.78mm to 0.83mm Gap 0.56 mm Current rating: 20 A

Mating Blade thickness 0.78mm to 0.83mm Gap 0.56 mm Current rating: 20 A

Mating Blade thickness 0.55mm to 0.65mm Gap 0.41 mm Current rating: 20 A

Mating Blade thickness 0.55mm to 0.65mm Gap 0.41 mm Current rating: 20 A

Mating Blade thickness 0.78mm to 0.83mm Gap 0.56 mm Current rating: 20 A

Mating Blade thickness 0.78mm to 0.83mm Gap 0.56 mm Current rating: 20 A

HORIZONTAL BLADES / PINS

Blade 2.8 x 0.80 mm Current rating 32 A

Blade 2.8 x 0.80 mm Current rating 32 A

Blade 6.35 x 0.79 mm Current rating 42 A

Blade 6.35 x 0.79 mm Current rating 42 A

Pin 0.635 x 0.51 mm

Pin 0.635 x 0.51 mm

Pin 0.635 x 0.635 mm

Pin 0.635 x 0.635 mm

Pin 0.81 x 0.81 mm

Pin 0.81 x 0.81 mm

Pin 1.0 x 1.0 mm

Pin 1.0 x 1.0 mm
