마이크로서트™ 벤치 탑 삽입시스템

HOME     제품소개    자동화 장비    마이크로서트™ 벤치 탑 삽입 시스템

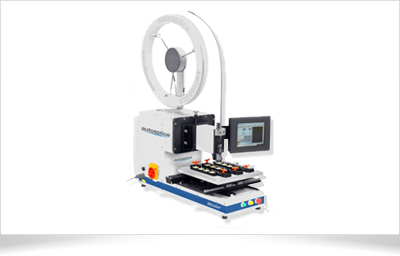

The MicroSert™ Bench Top Insertion System is the most cost-effective automated platform designed for smaller footprint environments. A single head stand-alone base incorporates a 12" x 12" (304mm x 304mm) insertion area and is digital servo motor driven. Small but powerful, the MicroSert system inserts up to three components per second and is built for today's fast paced global manufacturing environment.

Contact Santana Lugo at 858.678.3105 or Santana for more information about the new MicroSert™ Bench Top Insertion System.

  • Digital Servo Drive Technology for X-Y positioning table and Insertion Head
  • Insertion rate up to 3 per second
  • Repeatability: .001” (.0254mm)
  • Insertion Area: 12” x 12” (304mm X 304mm) scalable to 14” Y axis (355mm) and 18” X axis (457mm)
  • Large touch screen monitor (10.4”, 264mm)
  • Easy-to-program Windows XP professional operating system
  • Industrial digital 3 axis controller
  • USB Port
  • Interchangeable modular component heads


Length: 37.75" (958mm)
Width: 13.25" (336mm) No Tab Reel
Height: 21" (533mm) With Leg Pads
Height with pin reel: 47" (1193mm)
Weight: 350 lbs (159 kg)


Voltage:200-240 Vac, 30 Amps


Designed and manufactured to ISO/TS 16949-2009 quality standards.
